Neware 5V6A Battery cycle Testing Equipment Pouch Cells Capacitor Cycler
1 . Specialized in testing 18650 / 26650 / 21700 / 32650 Cylindrical Battery , Pouch Battery , Super Capacitor , etc .
2 . 5V6A Battery Testing System is mainly used for testing polymer batteries , cylindrical batteries and super capacitors . The test of polymer batteries and super capacitors need Neware special accessories . Cylindrical batteries need to be clamped between the upper and down clamps of the equipment . By moving the position of the upper accessory accurately according to the scales on both sides , you can test different capacities of Cylinders Batteries .
3 . To meet the various requirements adopted in advanced battery research , our equipments can automatically switch the current range in accordance with user settings to maintain consistent accuracy , and can be fitted with additional hardware to provide a number of optional features and capabilities .
4 . The model 5V6A can be configured with multi - current range channels , which have a current control range of 0.5mA to 0.1A , 0.1A to 3A , 3A to 6A as standard . The accuracy for current and voltage on these channels is 0.05 percent of FS . From the base system that provides the highest level of accuracy and time resolution , features can be added to allow the 5V6A test system to perform virtualy many type of test , with many type of products – cylindrical , pouch and coin cells , super – capacitors , etc , and chemistries .

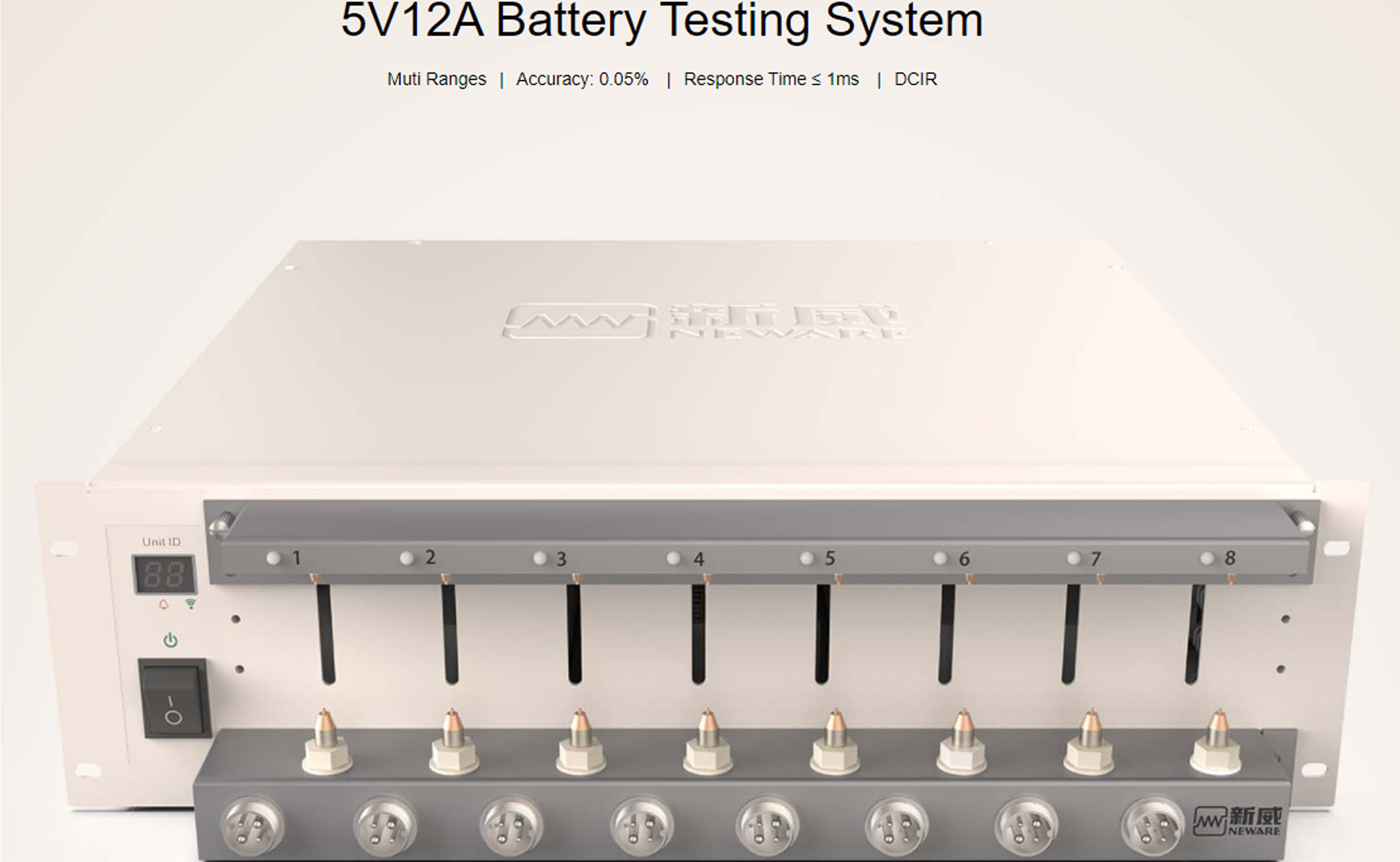

5 . Nowadays battery capacity density becomes higher and higher , thats the trend of this whole energy industry , people need smaller dimension battery to contain more energy . New technology and upgraded producing process make this idea come into reality . Of course , high C - Rate charge - Quick charge is another reason for higher current testers become more popular than before . For a 3000mAh cell battery , people want to charge it at 6000mA - 2C or even 9000mA - 3C current . And in some labs , researchers are trying 10C or even higher C - Rate charge or discharge . In this situation , 5V12A is the very rising star for both battery manufactures and researchers .
6 . Neware 5V6A is the most popular battery tester ever , more than 50 percent customers would choose this model as their main products . For customers who came across Neware the first time , 5V6A is also strongly suggested as their tryout demo machine . Neware 5V6A is powerful , reliable , it works on the very popular coin cell , cylindrical cell and prismatic cells , etc . It can be used for battery formation and grading , cycle - life test , performance and so on . From year 2016 , dual range 5V6A was successfully replaced the traditional 5V6A model . Higher range 100mA - 3A - 6A , makes it the best choice for cycle - life test and C - Rate test on 3C battery cells . Lower range 0.5mA - 100mA - 1A , makes 5V6A great for small pouch , coin cell and small battery test .
| Channel Features | Constant Current Source and Constant Voltage Source with Independent pairs of Closed - loop Structure |
| Channel Control Mode | Independent Control |
| Voltage | Per Channel Voltage Range | 1.5V - 5V |
| Discharge Min Voltage | 1.5V |
| Accuracy | 0.05 percent of FS |
| Stability | 0.05 percent of FS |
| Current | Per Channel Current Range | Range1 , 0.5mA - 0.1A Range2 , 0.1A - 3A Range3 , 3A - 6A |
| Per Channel Current Range | Range1 , 5mA - 1A Range2 , 1A - 6A Range3 , 6A - 12A |
| Accuracy | 0.05 percent of FS |
| Stability | 0.05 percent of FS |
